SIEMENS 7ML57252LF122BC0Sitrans lps200, compact

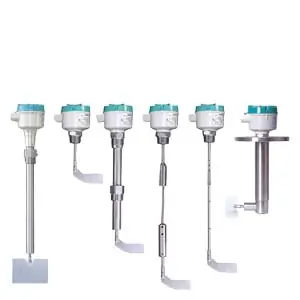

sitrans lps200 rotary paddle point level switch, compact design: level detection in solids. compact, side or top mount with extension options to 300 mm (11.81 inch). process temperature: up to +150 c (+302 f) power supply: 24 v dc, 1 rev/min. process connection threaded: 1-1/2" npt ((taper), ansi/asme b1.20.1) process pressure: up to 0.5 bar (7.25 psi) process connection material: stainless steel 303 (1.4305) flanges 321 (1.4541), tri-clamp 304 (1.4301) extension length: 150 mm (5.91 inch) measuring vane: hinged vane, 65 x 200 mm (2.56 x 7.87 inch) approvals: csa/fm general purpose, rcm, ce .
