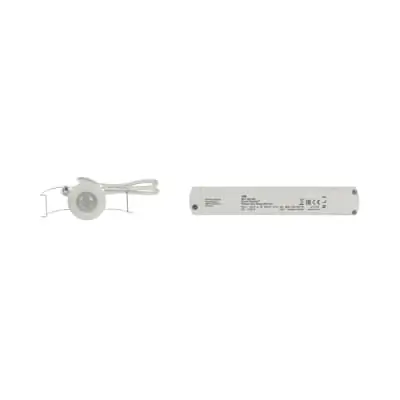

ABB 2CKA006800A25176811 eb-500 presence tech basicline mini

for switching lighting systems that depend on brightness and movement. detection range (installation height 3m, up to 6m in diameter). low mounting height due to separate sensor/actuator concept. continuously variable detection sensitivity. with brightness-independent test mode for evaluating the detection zone. with detection display in test mode. ceiling installation using integrated spring bracket. surveillance density: 19 sectors with 76 switching segments. switch-off delay: approx. 1 sec - 15 min or short-time pulse adjustable.
