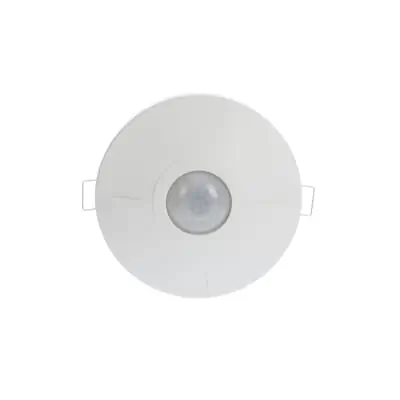

ABB 2CKA006800A25186814 u-500 presence detector basic

for switching lighting systems that depend on brightness and movement. detection range (for installation height of 3 m), circular, up to 8 m in diameter. for semiautomatic and fully automatic operation. additional activation/deactivation possibility through pushbutton input. adaptation of the detection range possible using the included masking elements. with brightness-independent test mode for evaluating the detection zone. with detection display in test mode. mounting possibility in combination with built-in installation boxes and device sockets. ceiling installation using integrated spring bracket. adjustment elements accessible on the front side. low mounting height (31 mm) surveillance density: 32 sectors with 128 switching segments. switch-off delay: approx. 5 sec - 30 min or short-time pulse adjustable.
